Painfully Nonpersistent

Here’s the setup:

You have two separate web applications, App 1 and App 2 running on two different EC2 instances, Instance1 and Instance2. Both applications are served through a single AWS Application Load Balancer (ALB). Seems fine, right? However, this simple setup can be problematic and result in some headaches for end-users. Let’s take a look at why that is.

What Can Happen?

1. Apparent Successful Login

Situation: The user logs into App 1 successfully on Instance 1, but when they use the ALB to access the application, they’re redirected to App2 on Instance 2.

Possible Outcome:

  • If App 2 on Instance 2 does not have access to the session information from App 1, the user might be redirected to App2 and see it as if they have logged in, but App 2 will not recognize their session from App1.
  • App 2 might not have any indication that the user is already logged in on App 1. Thus, it might prompt the user to log in again or show an interface indicating that they are not logged in.

2. Inability to Login

Situation: The user logs into App 1 on Instance 1, and then accesses the ALB, which directs them to App 2 on Instance 2.

Possible Outcome:

  • When the user is routed to App 2, App 2 has no session information from App 1. This means that the user is effectively logged out when they are directed to App 2.
  • The user might be unable to access the features or content available to logged-in users because App 2 does not recognize their session or credentials, leading to a login failure or prompt.

That my friend, has to do with a lack of session persistence, or sticky sessions as they are called in AWS. Well…what are they? Sticky sessions are used by application load balancers to ensure that a user’s session is consistently routed to the same server or instance throughout their interaction with a web application.

It ensures problems like the examples above can’t happen to an end-user, and is a crucial concept for applications that require user data to be maintained across multiple requests. User sessions on e-commerce sites and login-based applications rely on sticky sessions.

How Do Sticky Sessions Work?

Sticky sessions with AWS’s Application Load Balancer (ALB) are all about keeping things consistent for your users. Here’s the lowdown on the two stickiness methods you can choose.

1. App-Based Cookies

Your app can issue its own AWSALB cookie to track which instance should handle a user’s requests. This cookie lets the load balancer know exactly where to send the traffic, making sure users stay with the same server throughout their session.

2. Load Balancer-Generated Cookies

ALB: If you let the load balancer handle it, it automatically sets an AWSALB (or AWSALBCORS for CORS setups) cookie. This cookie keeps track of the instance serving the user, so they’re routed back to the same one without any extra fuss.

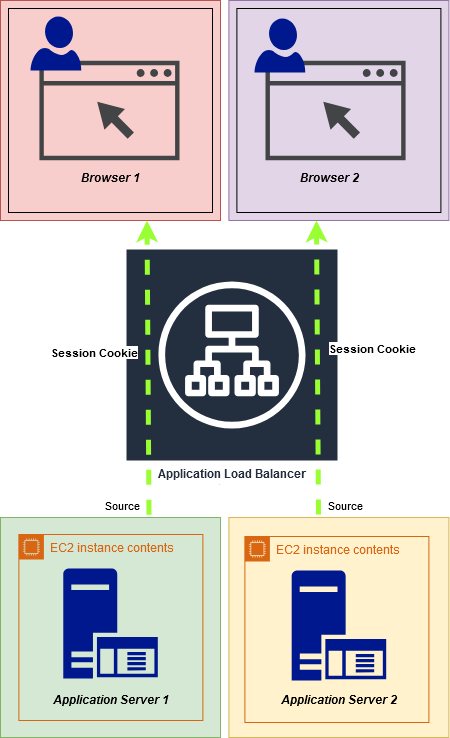

Here’s a simplified look at how a load balancer-generated cookies work.

Sticky Session Infographic

Setting Up Sticky Sessions

Follow the steps below to turn on stickiness for your target group of instances:

  1. Under Load Balancing, choose Target Groups, then Attributes, and finally click Edit.
  2. Scroll down to the Target selection configuration and check the box to turn stickiness.
  3. Leave the type as Load balancer generated cookie.
  4. Choose whatever stickiness duration you desire.
  5. Leave Cross-zone load balancing as is.
  6. Click Save changes.

Target Group Attributes Window

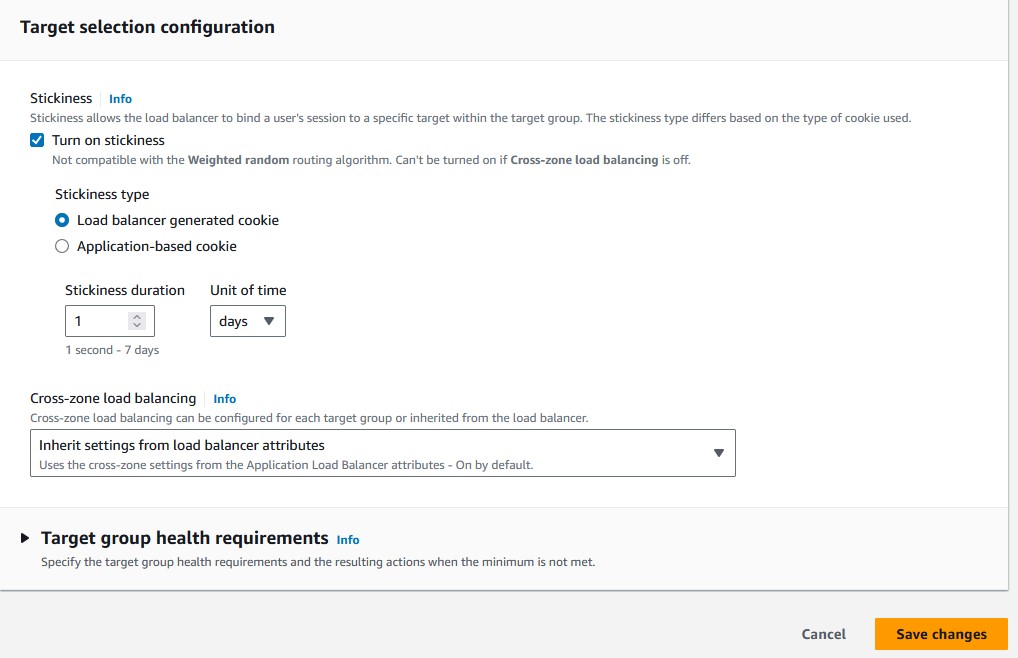

Target Selection Configuration

It’s as simple as that. Session stickiness should now be active for all instances of the target group.

Conclusion + Food For Thought

Navigating multiple web applications behind an ALB can be a balancing act of its own. To keep user sessions smooth and seamless, here’s what you should focus on:

  • Sticky Sessions: Think of them as a GPS for user traffic — once a user is connected to a specific instance, they stay on the same path for the rest of their session.
  • Session Harmony: You want your sessions to be in harmony. Applying consistent strategies across your apps helps them avoid dissonance.
  • ALB Configuration: Double-check your ALB setup to make sure it’s directing your traffic smoothly like butter 🧈.

That’s all for this one! You can find a variety of my security and networking posts under the categories and tags pages.
